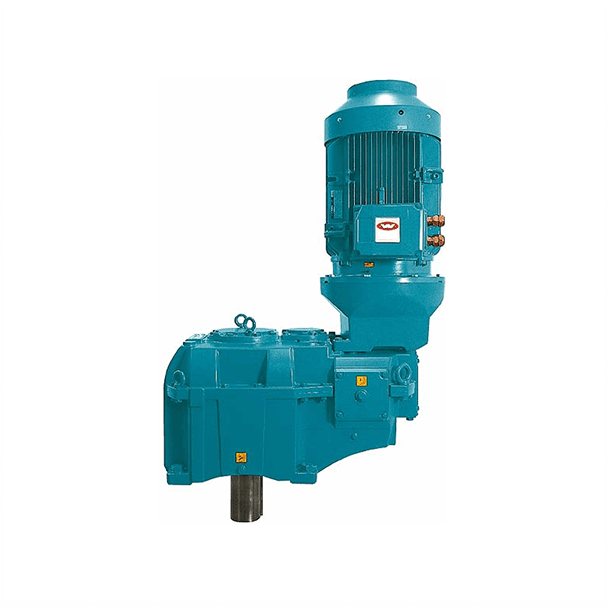

HANSENSpecific vertical housing - available in 20 sizes from 3 to 1100 kNm output torque, Increased bearing span for robustness against high overhung loads. Mounting feet symmetric around low speed shaft to evenly distribute loads, Service friendly with split housing and maintenance-free sealing system and Powerful Hansen P4 gear geometry for low noise and vibration levels.Designed for heavy-duty applications: Cooling towers, Mixers, Toasters, Pulpers and more.
Specification
| Item | Value |
|---|---|
| Type | 20 |
| Housing type | Specific housings for vertical applications (split-plane) |
| Gear | Helical and Bevel helical (in accordance with AGMA) |
| stages | 2, 3 or 4 stage |
| Reduction ratio | 3.55:1 to 630:1 and special ratio's upon request |
| Nominal output torque | Up to 9.7M lb-in (1100 kNm) |
| Input speed | up to 1800 rpm |
| Shaft length | Solid or hollow low speed shaft |
| Lubrication method | Pump lubrication |
BENEFITS
- Dedicated Vertical Housing
Rounded design, smooth transition of high forces from center bore to mounting feet
- Extreme High Overhung Loads
A wide range of Robust bearing arrangements and flange configurations
- Maintenance-Friendly Split Housing
Horizontally above the oil level for ease of inspection and maintenance
- Leakage-Free Sealing Systems
Drywell at the low speed shaft and maintenance free Oil-lock at the high speed shaft
- Reliable Lubrication
Lower oil level, Less losses, better thermal rating & longer oil life
- Instruments & Accessories
Condition monitoring instruments, Cooling devices & Complete Drive Packages (including base plates or lantern housings, motors, couplings, etc.)
