HANSENSpecific horizontal housing - available in 19 sizes up to 9.7M lb-in (1100 kNm) output Torque, Parallel and right Angle - 2/3/4 stage gearboxes with a wide range of reduction ratios. Service friendly with split housing, inspection cover, and maintenance-free sealing system and reliable product series allowing flexible customization and options upon request, Powerful Hansen P4 gear geometry for low noise and vibration levels.
Specification
| Item | Value |
|---|---|
| Type | 19 stages |
| Housing type | Specific housings for horizontal applications |
| Gear | helicalgear (design and rating according to AGMA) |
| stages | 2, 3 or 4 stage |
| Reduction ratio | 6.3:1 to 630:1 and special ratio's upon request |
| Nominal output torque | Up to 9.7M lb-in (1100 kNm) |
| Input speed | up to 1800 rpm |
| Shaft length | Solid or hollow low-speed shaft |
| Lubrication method | Splash lubrication or forced |
BENEFITS
- Dedicated Horizontal Housing
Stepped housing, better load distribution & easy access to mounting feetand easy installation
- Split Housing & Large Inspection Cover
Maintenance-friendly, easy inspection without oil drainage
- Powerfull Gear Geometry
For maximum load capacity, minimum losses & lower noise levels
- Maintenance-Free Sealing Systems
Oil-lock at the high speed shaft designed to keep the oil in and dirt out
- Never a Dry Start-up
Centralized oil filling guarantees initial oil lubrication at start-up. During operation, optimized splash lubrication with oil flow through the bearings
- Instruments & Accessories

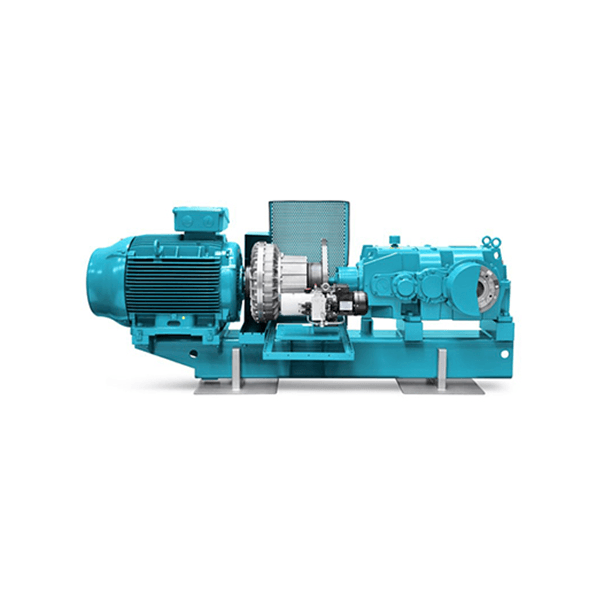

Condition monitoring instruments, Cooling devices & Complete Drive Packages (including base plates or lantern housings, motors, couplings, etc)
