HANSEN/Application/Condenser gearbox

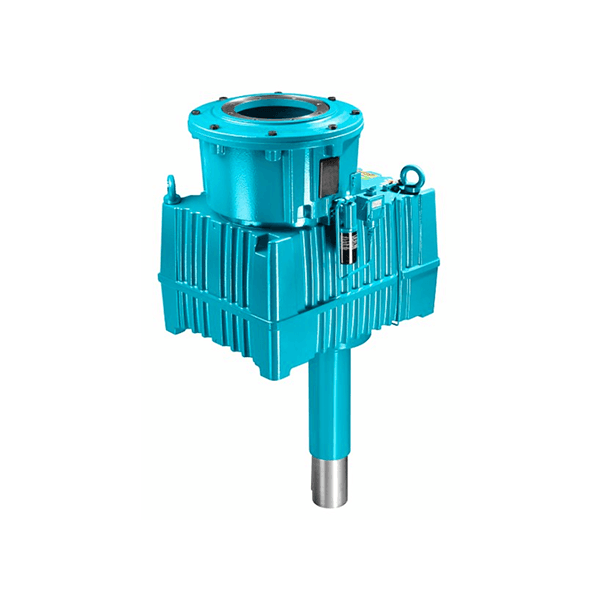

HANSENSpecially designed for air-cooled condenser (ACC) drives, they offer an efficient, robust and effective product. The lantern housing is standard and allows motor connection without adjustment from the top of the gear unit and is available in six sizes (20-70 kNm).
Specification
| Item | Value |
|---|---|
| Type | 6 |
| Housing type | Integral housing with lantern housing |
| Gear | helicalgear (design and rating according to AGMA) |
| Reduction ratio | 9:1 to 25:1 and special ratios on request |
| Nominal output torque | 20 to 70 kNm |
| Input speed | up to 1800 rpm |
| Shaft length | on request |
| Lubrication method | integrated lubrication pump (without external piping) |
BENEFITS
- Dedicated integral housing
Suitable for ACC applications with integrated lubrication (no external piping) and easy installation
- Optimized gear geometry
Maximum load capacity, minimum losses and low noise
- Non-leaking drywell
Standard optimum sealing on low-speed shafts
- Perfect lubrication
Supports windmill conditions as well.
- Optimized selection method
Considering start and stop conditions
- CTI specification design
Compliant with Cooling Tower Institute (CTI) standards
